1.5 Ton Electric Reach Stacker Forklift with 3000-6000mm Lift Height

Place of Origin : Jiangsu, China

Brand Name : KAD

MOQ : 1

Price : $2,999-3,280

Fork Length : 1070/customize

Fork Width : 550/685

Drive Type : FWD

Loading Capacity : 1500kg

Load Center : 500 mm

Lifting Height : 3000-6000mm

Battery : 24V/(210/280)Ah Lead Acid Battery

Weight : 1750/1950/2190 kg

Min Lifting Height : 35/40mm

Power Source : DC MOTOR

Drive Motor Power : 1.5 kW (AC)

Lift Motor Power : 4.5 kW

Battery Voltage : 24V

Battery Capacity : 210/280 Ah

Noise Level : <70 dB(A)

Contact Now

Products Description

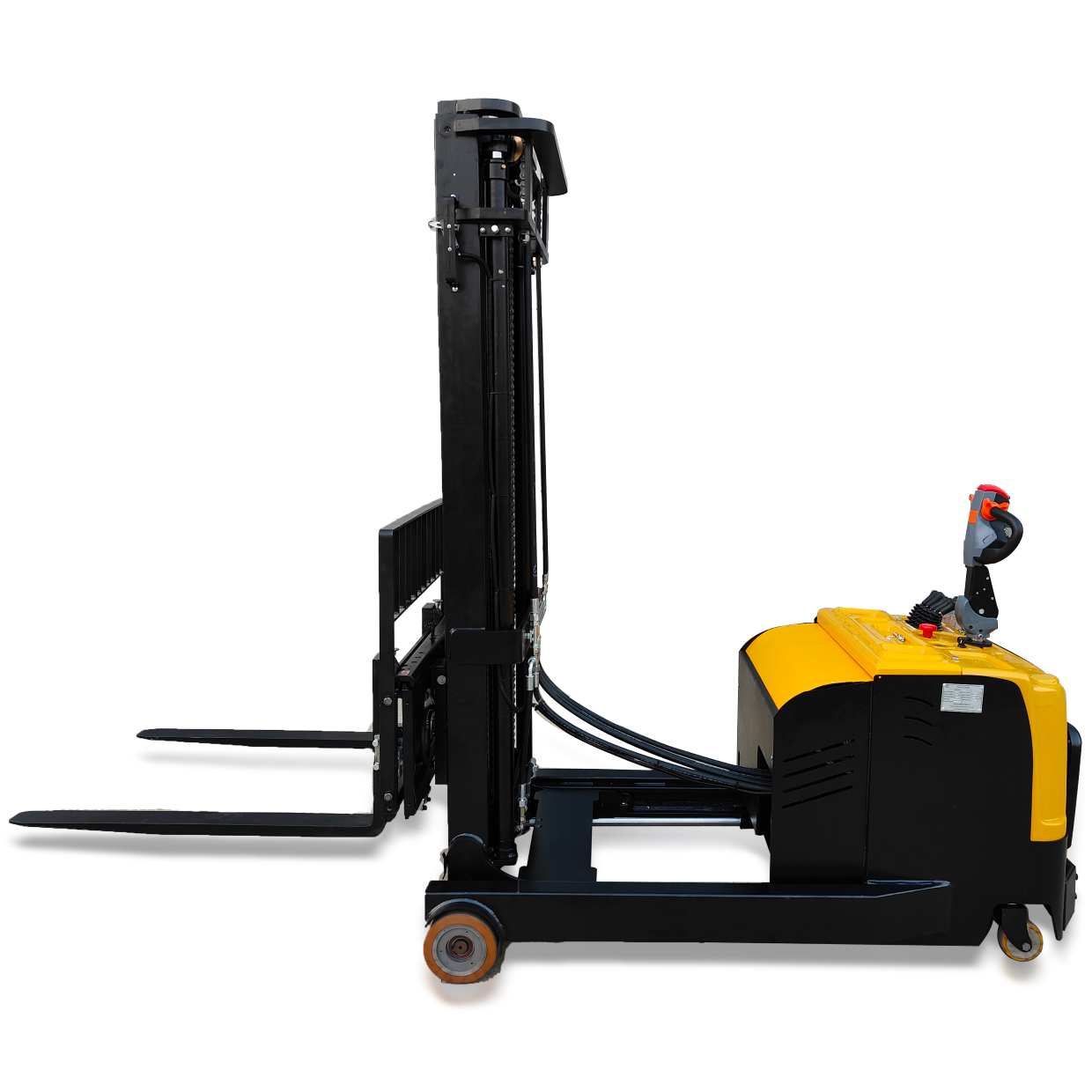

1.5 Ton 2 Ton Electric Forward Reach Stacker for Lifting up to 3m 4.5m 5m 6m Suitable for Multiple Pallet Types

The fully electric reach stacker features a high-efficiency AC drive system and electronic power steering for strong performance and flexible operation, significantly reducing operator fatigue. Equipped with a precision electronic limit switch, emergency reverse function, and power cut-off switch, it ensures enhanced operational safety. Its robust H-shaped mast and side-mounted cylinders offer excellent stability and a wide field of vision. The forks support forward and backward tilting for easier loading and unloading. Ergonomic control handles, an LCD display, and easy battery maintenance improve user experience. The controller's self-diagnostic system allows for faster troubleshooting. With a well-organized internal layout and tidy wiring, this machine is a reliable, efficient, and safe solution for modern material handling.

1.5 Ton Electric Reach Stacker Forklift with 3000-6000mm Lift Height

Model					CQDA12/15/20
Drive Type					Electric
Operation Type					Stand-on
Rated Load					Q(kg）	1200/1500/2000
Load Center					c(mm）	500
Front Overhang					X(mm)	350
Wheelbase					Y(mm)	1280/1280/1380
Weight (with Battery)					kg	1750/1950/2190
Wheels	Material			Polyurethane
		Wheel Size	Drive Wheel	mm	Φ250*75
		Wheel Size		Load Wheel	mm	Φ210*85
		Front/Rear Quantity			1x/2
		Rear Track Width			b11(mm)	905
Max Lifting Height					h3	2500/3000/3500/4000/4500/5000/5500
Free lifting height					mm	300
Height when Lowered					h13(mm)	35/40
Reach Distance					/3(mm)	500
Minimum Ground Clearance					m2(mm)	50
Overall Height when Operating					h4(mm)	3650/3760/4260/4760/5260/5760/6260
Mast Lowered Height					h1(mm)	1750/2015/2250/2500/2015/2170/2340
Overall Length					/1(mm)	2210/2310
Overall Width					b1(mm)	990
Fork Dimensions					S/e/l(mm)	351001070/401221070
Fork Outside Width					b5(mm)	200~680
Aisle Width	Pallet 1000×1200 (1200 Crosswise Placement)			Ast(mm)	2610/2610/1070
Aisle Width		Pallet 800×1200 (1200 Crosswise Placement)			Ast(mm)	2670/2670/2770
Turning Radius					Wa(mm)	1550/1650
Gradeability	Loaded			%	5
	Unloaded			%	8
Drive Brake					Electromagnetic regenerative braking
Drive Motor Power					kW	l.5/1.5/1.5(AC)
Lift Motor Power					kW	4.5/4.5/4.5
Battery Voltage / Rated Capacity					V/Ah	24V/(210/210/280)AH
Battery Weight					kg	190/190/260
Steering Type					Electric steering
Noise Level at Operator’s Ear (Compliant with DIN 12053)					dB(A)	＜70

Advanced Safety Features for Enhanced Operational Protection

Equipped with a precision electronic limit switch, anti-collision emergency reverse device, and power cut-off switch to enhance operational safety.

Suitable for different kinds of pallets (Double & Single deck)

This balanced stacker doesn't have fork legs in the front, it can work with double deck and single deck pallets and other customized size of pallets.

Advantages

1.AC drive system offers precise control and extended battery life; aluminum housing ensures excellent heat dissipation and long service life.
2.Precision electronic limit switch controls maximum lifting height to prevent motor damage.
3.Emergency reverse switch for enhanced safety.
4.Emergency power cut-off function.
5.Ergonomically designed control handle for easy and comfortable operation.
6.Integrated micro switch design allows for easy replacement.
7.Battery cover is easy to open, facilitating the addition of distilled water or electrolyte.
8.Hour meter and battery status display remind the operator to charge the battery in time.
9.Controller self-diagnostic system simplifies troubleshooting.

Main Parts

Name: Control Handle

Brand: KAD

Domestic famous control handle,functional buttons, can control UP/DOWN, FORWARD/BACKWARD sensitively. Using Curtis brand accelerator to ensure the safe operating.

Operation panel

Combined with the key, battery indicator, emergency switch. Functional panel and beautiful design make work joyful and easy.

Machine Parts

Strong cylinder and chain make fork run smoothly.

1-stage,2-stage,3-stage mast can be selected.

Mast reinforcement to ensure big load capacity

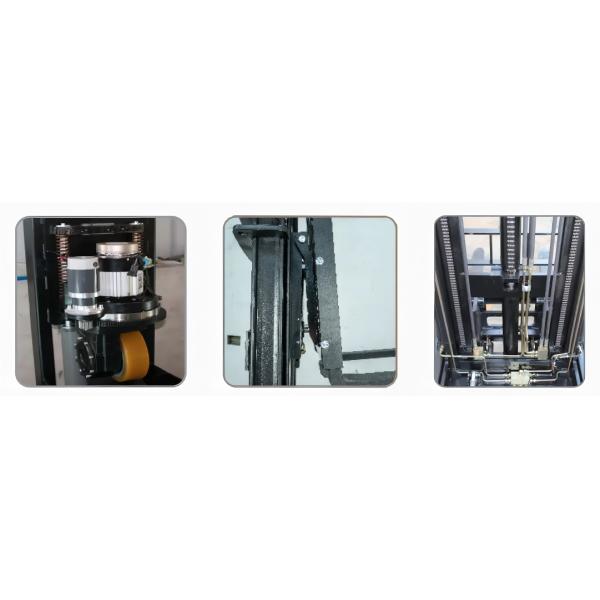

Electronic steering system EPS Fox Tilt Simple oil pipe
